GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade

Product Details:

Place of Origin: Guangdong, China
Brand Name: MRJH
Certification: ISO 14644,EU GMP,FDA
Model Number: MRJH - FLCDC1000N304L

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Contact Us
Packaging Details: Wooden frame
Delivery Time: 7-15 working days
Get Best Price Contact Now

Detail Information
External Dimensions: W1450 × D1140 × H1100 (mm) Air Shower Area: W1000 × D1000 × H1000 (mm)
Custom Made: Support Official Website: Www.ffu-cleanroom.com
Certification: ISO,CE,UL,RoHS
Highlight:

Pharma Grade Floor Pass Box

,

304 Stainless Steel Floor Pass Box

Product Description

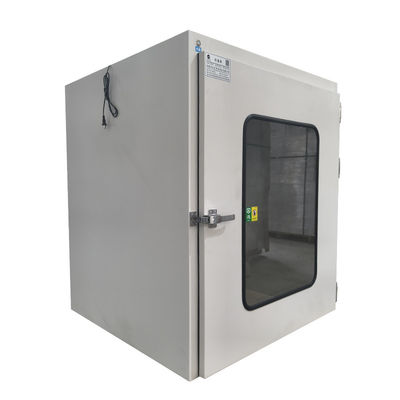

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 0

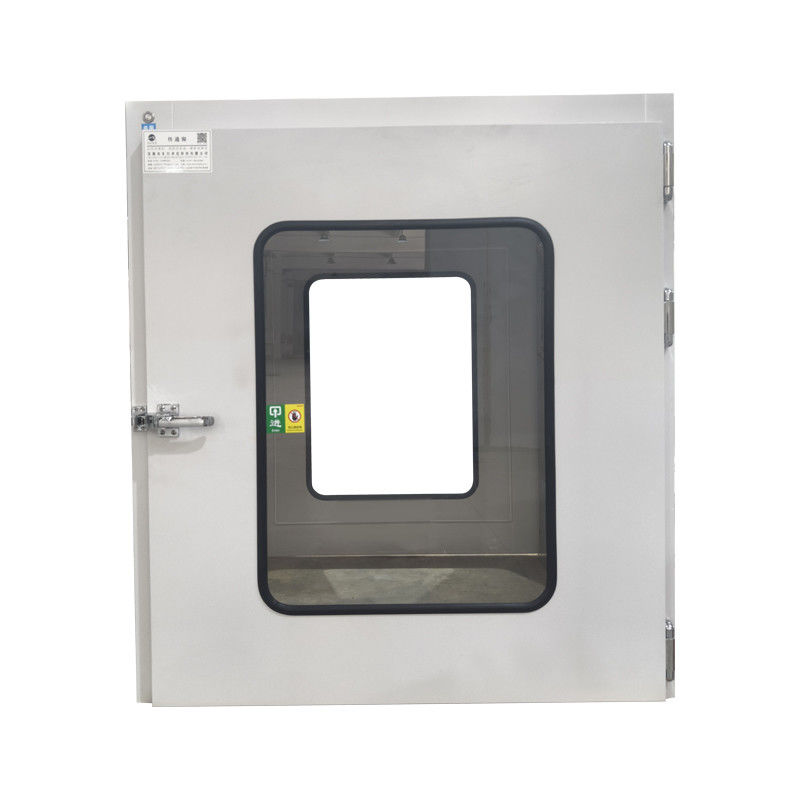

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade


The Air Shower Pass-Through Window is a contamination control system designed for safe material transfer between cleanroom environments, complying with ISO 14644-1 standards. Ideal for pharmaceutical, biotechnology, and electronics industries, it integrates cold plate paint outside and 304 stainless steel inside, a luxurious single door with a glass window, and high-efficiency filtration to ensure particle-free transfers. Equipped with electronic interlocking, clean lighting, and four adjustable stainless steel air nozzles, it guarantees contamination-free operation with 13–25 m/s airflow velocity and low noise levels.


Parameter Name

 parameter
Material Cold plate paint outside and 304 stainless steel inside
Window Design Single door with glass window
Air Shower System 4 adjustable stainless steel air nozzles
Control System Dual-door electronic interlock
Fan System 220V/50Hz air shower fan, nozzle outlet speed: 13–25 m/s
Filtration 1 pre-filter + 1 high-efficiency filter (99.99% efficiency at 0.5 µm)
Lighting Energy-saving lighting: 220V/50Hz, 21W * 1 lamp
Door System Single door with glass window and airtight sealing
Internal Design Base plate made of 304 stainless steel
Manufacturing Process Precision engineering for durability and functionality
External Dimensions W1450 × D1140 × H1100 (mm)
Internal Dimensions W1000 × D1000 × H1000 (mm)
Certifications ISO,GMP,CE

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 1

Key Features

1. Dual-Material Construction: Cold plate paint outside and 304 stainless steel inside for durability and cleanroom compatibility.

2. Luxurious Single Door Design: Features a glass window for visibility and aesthetics.

3. High-Efficiency Air Shower: 4 adjustable stainless steel nozzles with 13–25 m/s wind speed for rapid decontamination.

4. Smart Control: Dual-door electronic interlock to prevent cross-contamination.

5. Advanced Filtration: 1 pre-filter + 1 HEPA filter ensure 99.99% efficiency at 0.5 µm.

6. Energy-Saving Lighting: Integrated 21W lamp for illumination during transfers.

7. Sturdy Base Plate: Made of 304 stainless steel for stability and durability.

8. Safety & Visibility: Glass window ensures clear visibility and enhanced safety.

9. Compact Design: Optimized dimensions for efficient use in cleanroom environments.

10. Precision Engineering: Ensures reliable performance and long-lasting operation.

Application Scenarios

Material transfer in pharmaceutical cleanrooms.

Sterile sample handling in biomedical laboratories.

Contamination-sensitive component transfer in electronics manufacturing.


GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 2

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 3


GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 4

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 5

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 6

GMP-Certified Floor Pass Box | 304 Stainless Steel & Anti-Corrosion | Pharma/Electronics Grade 7


Q1: How does this GMP-Certified Floor Pass Box ensure compliance with pharmaceutical and electronics industry standards while preventing cross-contamination?
This floor pass box is rigorously certified to meet GMP Annex 1 and ISO 14644-1 Class 5 cleanliness requirements, ensuring sterile material transfer in regulated environments. The 304 stainless steel construction offers a smooth, non-porous surface that resists particle buildup and simplifies sanitization, critical for GMP compliance. Equipped with HEPA H14 filters (≥99.995% efficiency at 0.3μm), it maintains a particle-free environment, while the automatic interlock system prevents cross-contamination by ensuring only one door opens at a time. Optional UV-C sterilization further eliminates microbial risks, making it ideal for pharmaceutical manufacturing, electronics assembly, or any application requiring strict contamination control.

Q2: How does the 304 stainless steel and anti-corrosion design of this floor pass box withstand harsh chemicals and frequent sanitization in pharmaceutical or electronics cleanrooms?
The 304 stainless steel build provides superior corrosion resistance, making it suitable for environments where daily sanitization with aggressive disinfectants or exposure to mild chemicals is necessary. Its smooth, durable surface minimizes dust and debris accumulation, reducing maintenance efforts and contamination risks. The pass box is engineered with welded seams and airtight seals to maintain structural integrity even in high-humidity or chemically intensive settings. Routine maintenance, such as filter replacements (HEPA filters every 12–18 months) and gasket inspections, ensures long-term reliability. For highly corrosive applications, optional upgrades to 316L stainless steel further enhance chemical resistance.

Q3: How does the floor-mounted design of this GMP-Certified Pass Box optimize space and efficiency in pharmaceutical or electronics workflows with limited floor area?
The floor-mounted design maximizes space utilization by integrating seamlessly into cleanroom floors, freeing up wall space for other equipment. Its compact footprint (dimensions tailored for floor placement) allows for efficient bulk material transfer while maintaining a spacious interior for large containers or equipment. The ergonomic layout ensures easy operator access, and the stainless steel construction supports heavy loads and frequent use. The interlock system and laminar airflow design streamline workflows, reducing downtime in high-traffic environments. This space-saving, durable solution is particularly beneficial in pharmaceutical or electronics facilities where optimizing floor space and maintaining GMP compliance are critical to operational efficiency.
