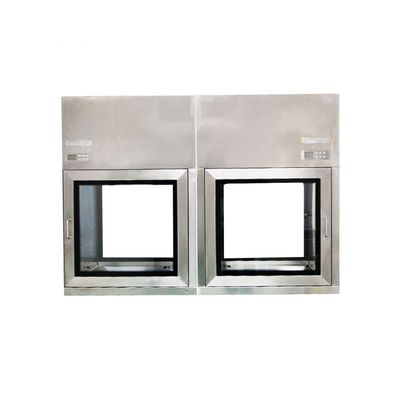

Customized Stainless Steel Pass Box for Food Industry Clean Room Transfer Window
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 150 |
| Showroom Location: | China | Video Outgoing-inspection: | Support |
| Machinery Test Report: | Support | Marketing Type: | New Product 2022 |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Motor, Craft |
| Warranty: | 2 Years | Product: | Pass Box |
| Material: | Aluminum / Steel / SS. / Custom | Use: | Reduce The Contamination Of Clean Rooms From Small Items |
| Add-on Features: | Allowed, Please Contact Us | Locks: | Mechanical Locks / Electronic Locks |
| Buzzer,Walkie-talkie: | Supported Options Custom | Air Shower,Laminar Flow: | Supported Options Custom |
| DOP,Barometer: | Supported Options Custom | Landing And Lifting: | Supported Options Custom |
| Port: | ShenZhen Port, Acording To Customer Requirements | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Customized Stainless Steel Pass Box,Food Industry Stainless Steel Pass Box,Customized Cassette Pass Box |
||
Product Description
Customized Stainless Steel For Food Industry OEM/ODM Acceptable
| Product | Pass Box |
|---|---|
| Material | Aluminum / Steel / Stainless Steel / Custom |
| Use | Reduce the contamination of clean rooms from small items |
| Features | Internal arc treatment, seamless connection |
| Add-on Features | Allowed, Please contact us |
| Locks | Mechanical locks / Electronic locks |
- Medical
- Pharmacy
- Food Industry
- Livestock
- Power Plants
- Healthcare and Hospitals
- Research Institutions
- Aerospace Technology
- Automotive Industry
Pass box is designed to facilitate the delivery of Druginging, food, and other articles to isolated patients undergoing radiation Druging treatment, while preventing radiation leakage.
As an auxiliary equipment of clean room, transfer window is mainly used for the transfer of small items between clean area, unclean area and clean area, so as to reduce the opening times of clean room door and reduce the pollution of clean area to the greatest extent.
More types are updating...
- Appearance Testing
- Functional Test And Visual Inspection
- Electrical Safety Tests
- Air Velocity Testing
- Noise Testing
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 400CS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 | 30 kg |
| 400SS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | All 304 | 33 kg |
| 600CS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 | 45 kg |
| 600SS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | All 304 | 50 kg |
| 800CS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 | 60 kg |
| 800SS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | All 304 | 66 kg |
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 400LCS | W 600 mm D 490 mm H 1000 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 | 59 kg |
| 400LCS | W 600 mm D 490 mm H 1000 mm | W 400 mm D 400 mm H 400 mm | All 304 | 78 kg |
| 600LCS | W 800 mm D 690 mm H 1200 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 | 83 kg |
| 600LCS | W 800 mm D 690 mm H 1200 mm | W 600 mm D 600 mm H 600 mm | All 304 | 100 kg |
| 800LCS | W 1100 mm D 890 mm H 1400 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 | 112 kg |
| 800LCS | W 1100 mm D 890 mm H 1400 mm | W 800 mm D 800 mm H 800 mm | All 304 | 145 kg |
- Low Noise
- Anti-Static
- Waterproof
- Low Temperature
- Leakage Resistance
- High Efficiency Filtration
