GMP Certified Electronic Interlocking Stainless Steel Pass Box for Clean Room Transfer Window
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 2000 Box/Boxes per Day |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 33 |
| Showroom Location: | China | Video Outgoing-inspection: | Support |
| Machinery Test Report: | Support | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 5 Years | Core Components: | PLC, Motor, Craft |
| Warranty: | 2 Years | Product: | Pass Box |
| Use: | Reduce The Contamination Of Clean Rooms From Small Items | Add-on Features: | Allowed, Please Contact Us |
| Locks: | Electronic Locks | Buzzer,Walkie-talkie: | Supported Options Custom |
| Air Shower,Laminar Flow: | Supported Options Custom | DOP,Barometer: | Supported Options Custom |
| Keyword: | Cleanroom Clean Room Pass Box For | Product Name: | Pass Box For Clean Room |
| Port: | ShenZhen Port, Acording To Customer Requirements | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Electric Pass Through Box,Pass Through Box Electronic Interlocking,Gmp Pass Box Customized |
||
Product Description
M-RCDC400 Electric Pass Through Box Electronic Interlocking GMP Pass Box
Customized Electric Through Box GMP Pass Box with OEM/ODM manufacturing options available.
Designed for cleanroom environments with internal arc treatment and seamless connections.
Product Specifications
| Product | Pass Box |
|---|---|
| Material | Aluminum / Steel / Stainless Steel / Custom |
| Features | Internal arc treatment, seamless connection |
| Add-on Features | Available upon request - Please contact us |
| Locks | Mechanical locks / Electronic locks |
| Landing and Lifting | Supported Options Custom |
Product Images

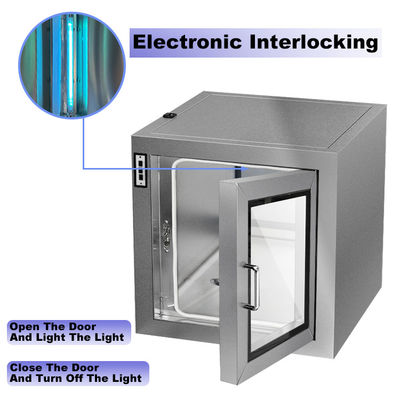

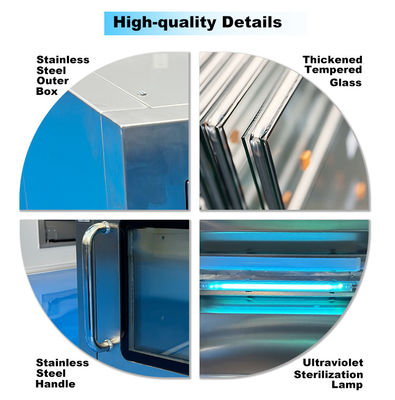

GMP Electronic Interlocking Transfer Window Features
- Stainless steel door hinge with all stainless steel ball handle
- Tempered glass observation windows with EVA high-performance sealing
- 8cm round steel mechanical interlock or imported electronic interlock
Technical Specifications
| Model No. | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| Mechanical Lock Pass Box | ||||
| 400CS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 | 30 kg |
| 400SS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | All 304 | 33 kg |
| 600CS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 | 45 kg |
| 600SS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | All 304 | 50 kg |
| 800CS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 | 60 kg |
| 800SS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | All 304 | 66 kg |
| GMP Electronic Lock Pass Box | ||||
| 400GCS | W 600 mm D 490 mm H 560 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 | 33 kg |
| 400GSS | W 600 mm D 490 mm H 560 mm | W 400 mm D 400 mm H 400 mm | All 304 | 40 kg |
| 600GCS | W 800 mm D 690 mm H 760 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 | 43 kg |
| 600GSS | W 800 mm D 690 mm H 760 mm | W 600 mm D 600 mm H 600 mm | All 304 | 55 kg |
| 800GCS | W 1100 mm D 890 mm H 960 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 | 59 kg |
| 800GSS | W 1100 mm D 890 mm H 960 mm | W 800 mm D 800 mm H 800 mm | All 304 | 69 kg |
| Air Shower Pass Box | ||||
| 600FCS | W 950 mm D 680 mm H 1550 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 | 70 kg |
| 600FSS | W 950 mm D 680 mm H 1550 mm | W 600 mm D 600 mm H 600 mm | All 304 | 89 kg |
| 800FCS | W 1550 mm D 880 mm H 1750 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 | 100 kg |
| 800FSS | W 1550 mm D 880 mm H 1750 mm | W 800 mm D 800 mm H 800 mm | All 304 | 118 kg |
| 1000FCS | W 1350 mm D 1080 mm H 1950 mm | W 1000 mm D 1000 mm H 1000 mm | External: Coated Cold Steel Internal: 304 | 130 kg |
| 1000FSS | W 1350 mm D 1080 mm H 1950 mm | W 1000 mm D 1000 mm H 1000 mm | All 304 | 148 kg |
Why Choose Us
Certifications
Frequently Asked Questions
Q1: Do you accept small orders?
A: Yes, we accept small orders or trial orders.
Q2: What is your minimum order requirement?
A: The minimum order required for all our styles is 1 product. Please contact us for details.
Q3: Can you do design for my ideas or drawing?
A: Yes, we have experienced designers. Please send the detailed requirements directly.
Q4: How should I supply my own artwork to you?
A: Most preferred format is PDF or Coreldraw vector artwork with all fonts converted to outlines/curves. We also accept .jpg, .pdf, .tiff, .png, .psd or .bmp files (please enlarge artwork 4 times larger than the pin size).
Q5: Will I receive an art proof before you produce my products?
A: Yes, we will send you a proof after receipt of your order and will not produce until we get your approval of the artwork.
Q6: How long can you ship the goods? Do you have stock for this item?
A: For products that are in stock, we can deliver to you in 1-3 days. Regular lead time for mass production is 20 days depending on order quantity. We keep some stock for standard items but the stock quantity is always floating. Please feel free to contact us to get more update info.
Want to Know more details about this product
