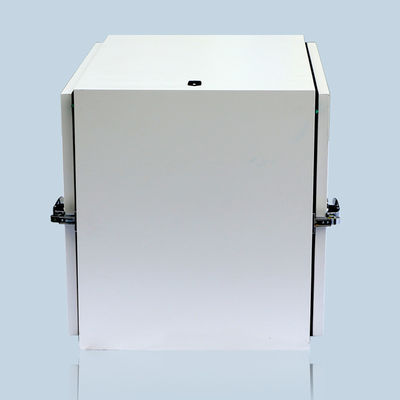

Lab Static Clean Room Pass Box Mechanical Interlocking OEM / ODM Acceptable
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 days |
| Supply Ability: | 300 Set/Sets per Week |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 55 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 5 Years | Core Components: | Motor |
| Warranty: | 2 Years | Product: | Pass Box |
| Material: | Aluminum / Steel / SS. / Custom | Use: | Reduce The Contamination Of Clean Rooms From Small Items |
| Add-on Features: | Allowed, Please Contact Us | Locks: | Mechanical Locks / Electronic Locks |
| Buzzer,Walkie-talkie: | Supported Options Custom | Air Shower,Laminar Flow: | Supported Options Custom |
| DOP,Barometer: | Supported Options Custom | Landing And Lifting: | Supported Options Custom |
| Port: | ShenZhen Port, Acording To Customer Requirements | Official Website: | Www.ffu-cleanroom.com |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Clean Room Pass Box Mechanical Interlocking,Clean Room Pass Box ODM,Lab Static Pass Box |
||
Product Description
Customized Lab Pass Box Static Pass Box Static Mechanical Interlocking Pass Box OEM/ODM Acceptable
Specification
|
Product
|
pass box
|
|
Material
|
Aluminum / Steel / SS. / custom
|
|
Use
|
Reduce the contamination of clean rooms from small items
|
|
|
MEDICAL PHARMACY FOOD INDUSTRY , LIVESTOCK, POWER PLANTS,HEALTHY CARE AND HOSPITAL , RESEARCH INSTITUTION , AEROSPACE TECHNOLOGY
AUTO INDUSTRY |
|
Features
|
Internal arc treatment, seamless connection
|
|
Add-on features
|
Allowed, Please contact us
|
|
Locks
|
Mechanical locks
|
|
Buzzer,Walkie-talkie
|
Supported Options Custom
|
|
Air shower,Laminar flow
|
Supported Options Custom
|
|
DOP,Barometer
|
Supported Options Custom
|
|
Landing and lifting
|
Supported Options Custom
|
The pass box is designed to facilitate the delivery of drugs, food, and other articles to isolated patients undergoing radiation drug treatment, while preventing radiation leakage.
Product Introduction
As an auxiliary equipment of clean room, transfer window is mainly used for the transfer of small items between clean area, unclean area and clean area, so as to reduce the opening times of clean room door and reduce the pollution of clean area to the greatest extent. Transfer window is widely used in laboratories, hospitals, food processing industry, LED, electronics factories and other places that need air purification.

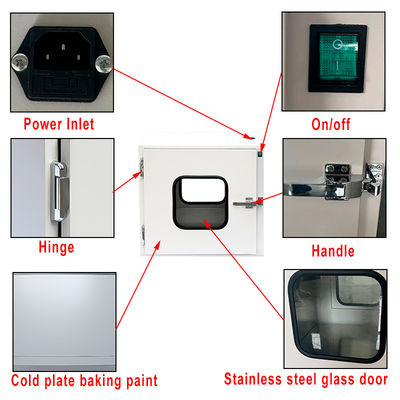

Product Details

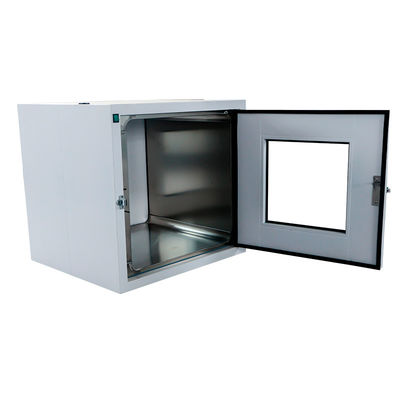

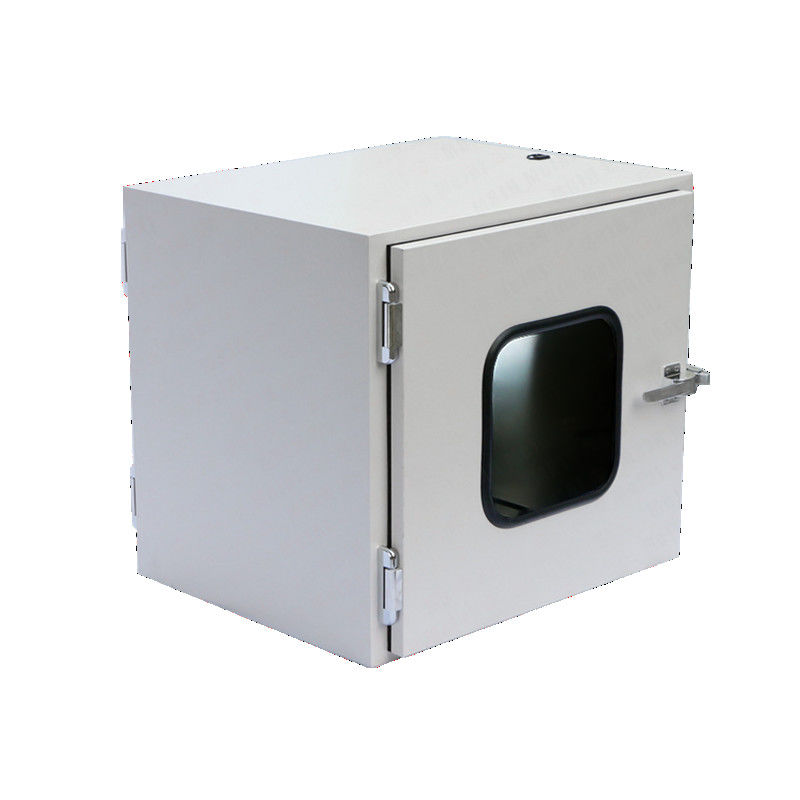

GMP Electronic Interlocking Transfer Window
1. Stainless steel door hinge, all stainless steel handle.
2. Tempered glass Obsevation Windows, EVA highperformance sealing
3. 8cm round steel mechanical interlock or importedelectronic interlock.
Application Show
More types are updateding.....
Omit the decimal point number, manual measurement will have a small error
|
NO.
|
OUT SIZE
|
IN SIZE
|
MATERIAL
|
WEIGHT
|
||||
|
Mechanical Lock Pass Box
|
|
|
|
|
||||
|
400CS
|
W 560 mm
D 480 mm
H 520 mm
|
W 400 mm
D 400 mm
H 400 mm
|
External:
Coated Cold Steel
Internal: 304 |
30 kg
|
||||
|
400SS
|
|
|
All 304
|
33 kg
|
||||
|

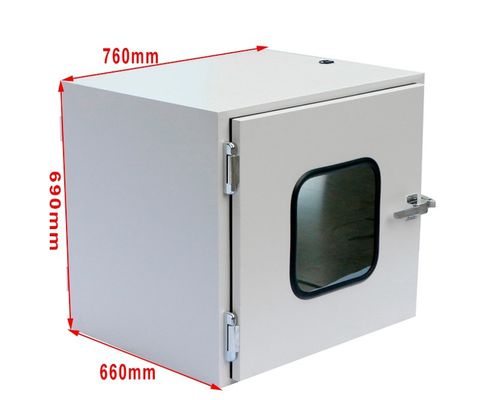

600CS
|
W 760 mm
D 680 mm
H 720 mm
|
W 600 mm
D 600 mm
H 600 mm
|
External:
Coated Cold Steel
Internal: 304 |
45 kg
|
||||
|
600SS
|
|
|
All 304
|
50 kg
|
||||
|
800CS
|
W 960 mm
D 880 mm
H 920 mm
|
W 800 mm
D 800 mm
H 800 mm
|
External:
Coated Cold Steel
Internal: 304
|
60 kg
|
||||
|
800SS
|
|
|
All 304
|
66 kg
|
||||
|
GMP Electronic lock Pass Box
|
|
|
|
|
||||
|
400GCS
|
W 600 mm
D 490 mm
H 560 mm
|
W 400 mm
D 400 mm
H 400 mm
|
External:
Coated Cold Steel
Internal: 304 |
33 kg
|
||||
|
400GSS
|
|
|
All 304
|
40 kg
|
||||
|
600GCS
|
W 800 mm
D 690 mm
H 760 mm
|
W 600 mm
D 600 mm
H 600 mm
|
External:
Coated Cold Steel
Internal: 304 |
43 kg
|
||||
|
600GSS
|
|
|
All 304
|
55 kg
|
||||
|
800GCS
|
W 1100 mm
D 890 mm
H 960 mm
|
W 800 mm
D 800 mm
H 800 mm
|
External:
Coated Cold Steel
Internal: 304 |
59 kg
|
||||
|
800GSS
|
|
|
All 304
|
69 kg
|
||||
|
Air Shower Pass Box
|
|
|
|
|
||||
|
600FCS
|
W 950 mm
D 680 mm
H 1550 mm
|
W 600 mm
D 600 mm
H 600 mm
|
External:
Coated Cold Steel
Internal: 304 |
70 kg
|
||||
|
600FSS
|
|
|
All 304
|
89 kg
|
||||
|
800FCS
|
W 1550 mm D 880 mm H 1750 mm
|
W 800 mm
D 800 mm
H 800 mm
|
External:
Coated Cold Steel
Internal: 304 |
100 kg
|
||||
|
800FSS
|
|
|
All 304
|
118 kg
|
||||
|
1000FCS
|
W 1350 mm D 1080 mm H 1950 mm |
W 1000 mm D 1000 mm
H 1000 mm
|
External:
Coated Cold Steel
Internal: 304 |
130 kg
|
||||
|
1000FSS
|
|
|
All 304
|
148 kg
|
||||
|
Laminar flow Pass Box
|
|
|
|
|
||||
|
400LCS
|
W 600 mm
D 490 mm
H 1000 mm
|
W 400 mm D 400 mm H 400 mm |
External:
Coated Cold Steel
Internal: 304 |
59 kg
|
||||
|
400LCS
|
|
|
All 304
|
78 kg
|
||||
|
600LCS
|
W 800 mm D 690 mm
H 1200 mm
|
W 600 mm
D 600 mm
H 600 mm |
External:
Coated Cold Steel
Internal: 304 |
83 kg
|
||||
|
600LCS
|
|
|
All 304
|
100 kg
|
||||
|
800LCS
|
W 1100 mm D 890 mm
H 1400 mm |
W 800 mm
D 800 mm H 800 mm |
External:
Coated Cold Steel
Internal: 304 |
112 kg
|
||||
|
800LCS
|
|
|
All 304
|
145 kg
|
||||
Internal arc treatment for seamless connection
Add-on features available (please contact us)
Mechanical locks or electronic locks
Optional features: Buzzer, Walkie-talkie
Customizable options: Air shower, Laminar flow
Customizable options: DOP, Barometer
Customizable options: Landing and lifting
Add-on features available (please contact us)
Mechanical locks or electronic locks
Optional features: Buzzer, Walkie-talkie
Customizable options: Air shower, Laminar flow
Customizable options: DOP, Barometer
Customizable options: Landing and lifting
1300*1300 HIGHT EFFICIENCY
FILTER PRODUCTION LINE
2000 WATT LASER
INTRGRAED LASER CUTTING
AND TUBE CUTTING MACHINE
AND TUBE CUTTING MACHINE
FRENCH KIMO NOISE METER
FFU MOTOR TESTING EQUIPMENT
KIMO ANEMOMETER
Technology Guardian of Health
Our products are packed in bulk or in customized packages according to customers' requirements.
Certificate can be verified, welcome to the factory field visit.
