Customizable Stainless Steel Laminar Flow Pass Box with Mechanical Interlock for Clean Rooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 300 Set/Sets per Week |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 55 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 5 Years | Core Components: | Motor |
| Warranty: | 2 Years | Product: | Pass Box |
| Material: | Aluminum / Steel / SS. / Custom | Use: | Reduce The Contamination Of Clean Rooms From Small Items |
| Add-on Features: | Allowed, Please Contact Us | Locks: | Mechanical Locks / Electronic Locks |
| Buzzer,Walkie-talkie: | Supported Options Custom | Air Shower,Laminar Flow: | Supported Options Custom |
| DOP,Barometer: | Supported Options Custom | Landing And Lifting: | Supported Options Custom |
| Port: | ShenZhen Port, Acording To Customer Requirements | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Customizable Lab Pass Through Box,OEM Lab Pass Through Box,ODM Laminar Flow Pass Box |
||
Product Description

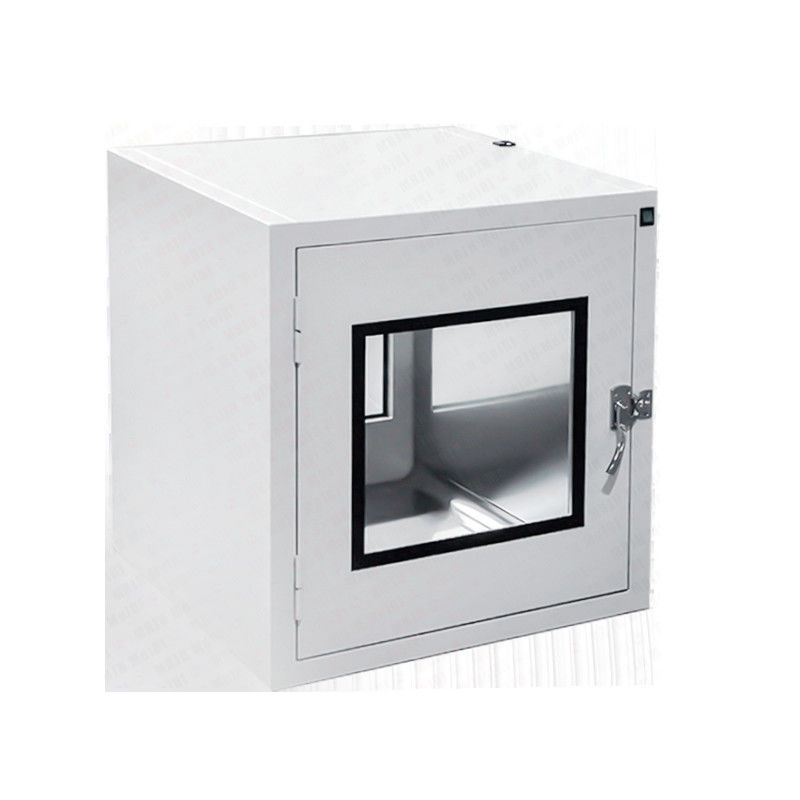

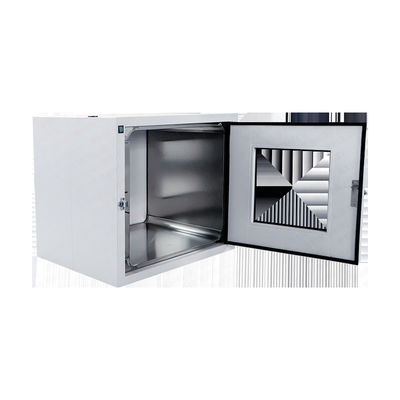

Customizable Lab Pass Through Box Laminar Flow Pass Box OEM / ODM Acceptable
Product Overview
Customized Lab Pass Box Static Pass Box Static Mechanical Interlocking Pass Box OEM/ODM Acceptable
Product
Pass Box
Material
Aluminum / Steel / Stainless Steel / Custom
Use
Reduce contamination of clean rooms from small items
Application
Medical, Pharmacy, Food Industry, Livestock, Power Plants, Healthcare and Hospital, Research Institution, Aerospace Technology, Auto Industry
Features
Internal arc treatment, seamless connection
Add-on Features
Allowed, Please contact us
Locks
Mechanical locks
Optional Features
Buzzer, Walkie-talkie, Air shower, Laminar flow, DOP, Barometer, Landing and lifting
More drawings available...
Consult and get your own engineering consultant!
Product Introduction
The cold paint plate pass box provides a controlled and contamination-free environment for the transfer of temperature-sensitive automotive components between the paint shop and assembly line, ensuring the quality of the paint finish.
With its passive temperature control design, the pass box allows for the transfer of cold paint plates without compromising their low temperature, ensuring proper adhesion and curing of the paint during the manufacturing process.
The air filtration system maintains a clean environment, preventing dust or particulate contaminants from compromising the quality of painted surfaces during transfer within metal fabrication facilities.
By implementing an interlocking mechanism and access control system, the pass box ensures that only trained personnel have access to cold paint plates, enhancing safety protocols and protecting against unauthorized handling.
The customizable cold paint plate pass box integrates into existing production lines, featuring adjustable shelving and conveyor systems for efficient transfer of plates, optimizing manufacturing processes and maintaining desired paint quality.
Product Details
GMP Electronic Interlocking Transfer Window
- Stainless steel door hinge, all stainless steel handle
- Tempered glass observation windows, EVA high-performance sealing
- 8cm round steel mechanical interlock or imported electronic interlock
Application Showcase
More types are being updated...
Note: Manual measurement may have small errors, decimal points omitted.
Product Specifications

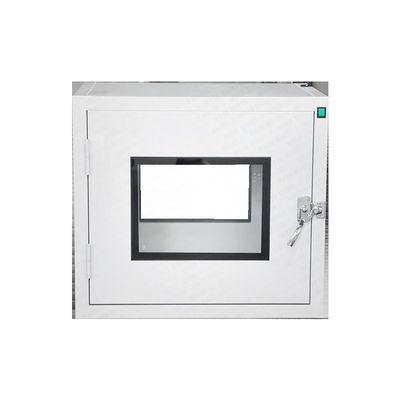

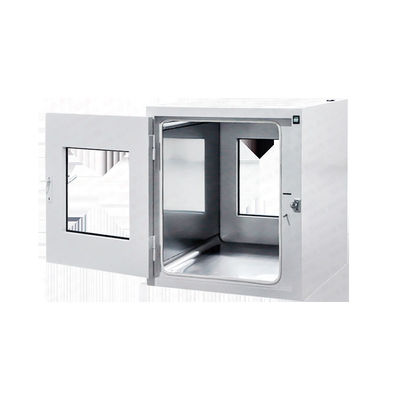

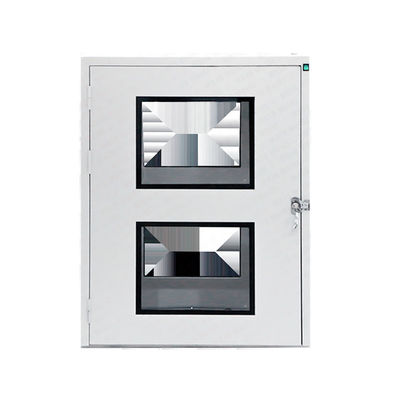

Mechanical Lock Pass Box
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 400CS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 |
30 kg |
| 400SS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | All 304 | 33 kg |
| 600CS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 |
45 kg |
| 600SS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | All 304 | 50 kg |
| 800CS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 |
60 kg |
| 800SS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | All 304 | 66 kg |
GMP Electronic Lock Pass Box
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 400GCS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 |
33 kg |
| 400GSS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | All 304 | 40 kg |
| 600GCS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 |
43 kg |
| 600GSS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | All 304 | 55 kg |
| 800GCS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 |
59 kg |
| 800GSS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | All 304 | 69 kg |
Air Shower Pass Box
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 600FCS | W 950mm D 680mm H 1550mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 |
70 kg |
| 600FSS | W 950mm D 680mm H 1550mm | W 600mm D 600mm H 600mm | All 304 | 89 kg |
| 800FCS | W 1550mm D 880mm H 1750mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 |
100 kg |
| 800FSS | W 1550mm D 880mm H 1750mm | W 800mm D 800mm H 800mm | All 304 | 118 kg |
| 1000FCS | W 1350mm D 1080mm H 1950mm | W 1000mm D 1000mm H 1000mm | External: Coated Cold Steel Internal: 304 |
130 kg |
| 1000FSS | W 1350mm D 1080mm H 1950mm | W 1000mm D 1000mm H 1000mm | All 304 | 148 kg |
Laminar Flow Pass Box
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| 400LCS | W 600mm D 490mm H 1000mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 |
59 kg |
| 400LSS | W 600mm D 490mm H 1000mm | W 400mm D 400mm H 400mm | All 304 | 78 kg |
| 600LCS | W 800mm D 690mm H 1200mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 |
83 kg |
| 600LSS | W 800mm D 690mm H 1200mm | W 600mm D 600mm H 600mm | All 304 | 100 kg |
| 800LCS | W 1100mm D 890mm H 1400mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 |
112 kg |
| 800LSS | W 1100mm D 890mm H 1400mm | W 800mm D 800mm H 800mm | All 304 | 145 kg |
Too complicated for choices? Contact our customer service for direct access to the product you want!
Our Advantages
Company Profile
Shenzhen Meiri Purification Technology Co., Ltd
Founded in 2012, we specialize in the research, development, sales, and service of air filters, air purification equipment, and clean room solutions. We have a clean production hall equipped with advanced manufacturing equipment including AMADA automatic CNC presses, CNC bending machines, shearing machines, and interactive laser engraving machines.
With advanced air purification equipment production and highly automated machine lines, our products and production technology have obtained dozens of national patents and international certifications such as CE, UL, ROHS, and REACH. We consistently meet the production requirements of large-scale projects.
Multiple AMADA Turret CNC Punch Presses
FFU Production Line
AMADA CNC Bending Machine
High quality sheet metal - Beautiful and durable surface
All products can be customized in size and style according to customer requirements. Professional after-sales service with one-to-one online processing and timely feedback.
Quality Testing
- Appearance Testing
- Functional Test and Visual Inspection
- Electrical Safety Tests
- Air Velocity Testing
- Noise Testing
1300×1300 High Efficiency Filter Production Line
2000 Watt Laser
Integrated Laser Cutting and Tube Cutting Machine
French KIMO Noise Meter
FFU Motor Testing Equipment
KIMO Anemometer
GMW Multi-Function Tester
METOTE Dust Particle Detector
TSI Air Volume Cover
Safeguarding Air Quality - Technology Guardian of Health
Transportation: Shipping options by ship or air available. Products packed in bulk or customized packages according to customer requirements.
Event Hot Product
Certificates can be verified, welcome to factory field visits. We have built a modern quality management system in strict accordance with international standards including ISO9001, ISO14001. Our products and production technology have obtained dozens of national patents and international certifications such as CE, UL, RoHS, REACH.
