Stainless Steel UV Pass Box with Wind Speed Adjustable and Customizable for Dust Free Rooms
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 300 Set/Sets per Week |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Condition: | New |
|---|---|---|---|
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert | Weight (KG): | 55 |
| Showroom Location: | None | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 5 Years | Core Components: | Motor |
| Warranty: | 2 Years | Product: | Pass Box |
| Material: | Aluminum / Steel / SS. / Custom | Use: | Reduce The Contamination Of Clean Rooms From Small Items |
| Add-on Features: | Allowed, Please Contact Us | Locks: | Mechanical Locks / Electronic Locks |
| Buzzer,Walkie-talkie: | Supported Options Custom | Air Shower,Laminar Flow: | Supported Options Custom |
| DOP,Barometer: | Supported Options Custom | Landing And Lifting: | Supported Options Custom |
| Port: | ShenZhen Port, Acording To Customer Requirements | Certification: | ISO,CE,UL,RoHS |
| Highlight: | Stainless Steel UV Pass Box,Customizable UV Pass Box |
||
Product Description

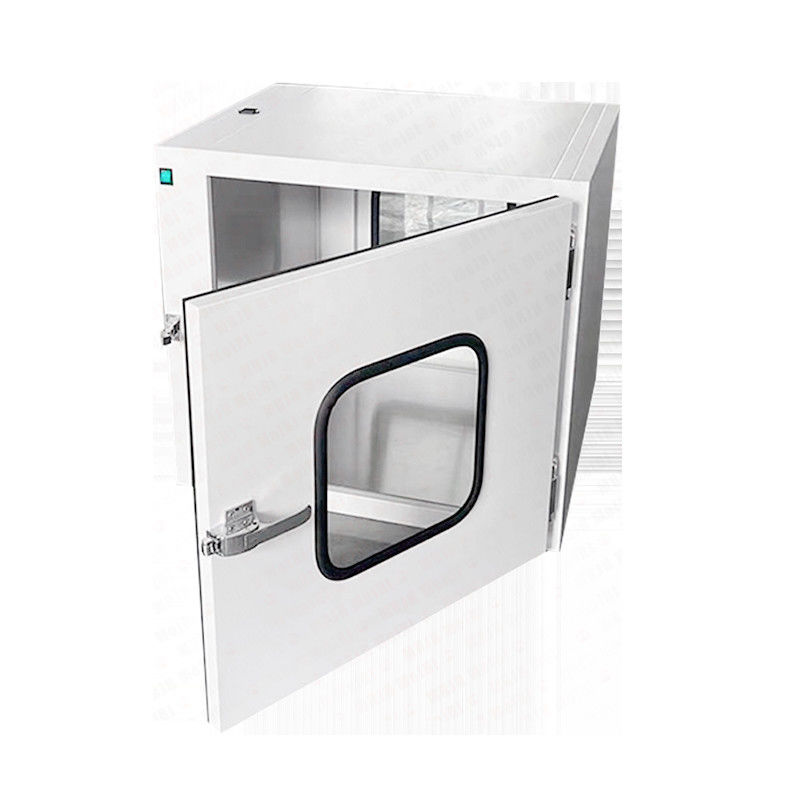

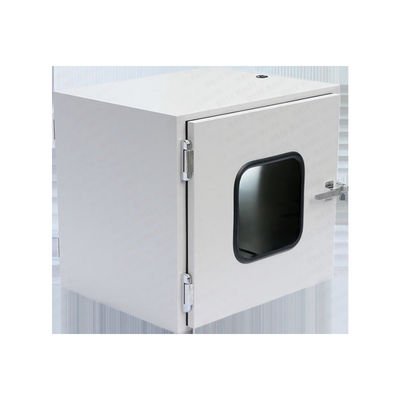

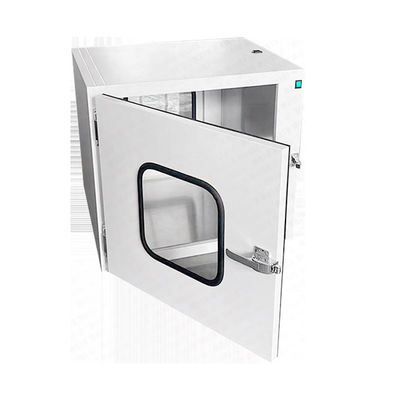

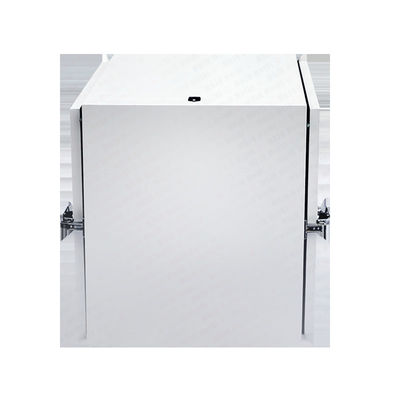

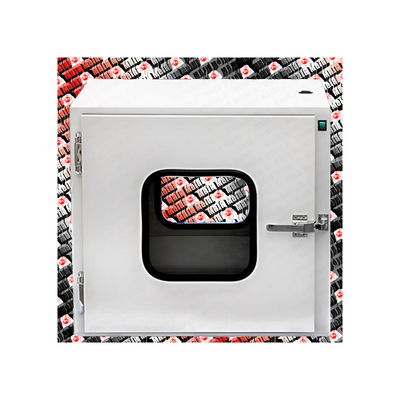

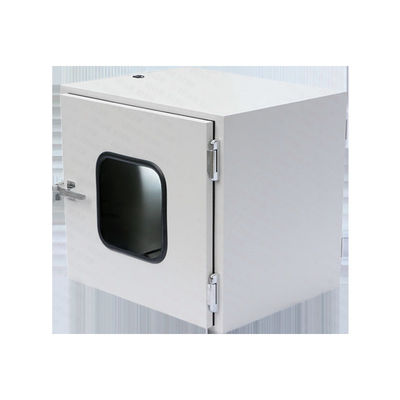

Stainless Steel UV Pass Box Wind Speed Adjustable Customizable For Dust Free Room
Product Overview
Customized Lab Pass Box with mechanical interlocking system, designed to reduce contamination in clean rooms during small item transfers. OEM/ODM services available.
Key Specifications
- Material: Aluminum / Steel / Stainless Steel / Custom
- Primary Use: Reduce contamination in clean rooms during item transfers
- Applications: Medical, Pharmacy, Food Industry, Livestock, Power Plants, Healthcare, Hospitals, Research Institutions, Aerospace Technology, Auto Industry
Internal Design
Internal arc treatment, seamless connection
Locking System
Mechanical locks
Custom Features
Buzzer, Walkie-talkie, Air shower, Laminar flow, DOP, Barometer options available
Cold Paint Plate Pass Box
Specialized equipment for transferring cold paint plates or components between controlled environments while maintaining quality and cleanliness.
Key Features
- Material Transfer: Controlled passage for transferring items without compromising temperature or exposing to contaminants
- Temperature Control: Passive design minimizes heat transfer to maintain cold temperature
- Contamination Control: Air filtration systems prevent ingress of dust and particles
- Safety & Security: Interlocking mechanisms and access control systems
- Customization: Adjustable shelving, conveyor systems, and specialized lighting options
GMP Electronic Interlocking Transfer Window
- Stainless steel door hinge and handle
- Tempered glass observation windows with EVA high-performance sealing
- 8cm round steel mechanical interlock or imported electronic interlock
Product Specifications
| Model | Outer Size | Inner Size | Material | Weight |
|---|---|---|---|---|
| Mechanical Lock Pass Box | ||||
| 400CS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 | 30 kg |
| 400SS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | All 304 | 33 kg |
| 600CS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 | 45 kg |
| 600SS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | All 304 | 50 kg |
| 800CS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 | 60 kg |
| 800SS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | All 304 | 66 kg |
| GMP Electronic Lock Pass Box | ||||
| 400GCS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 | 33 kg |
| 400GSS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | All 304 | 40 kg |
| 600GCS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 | 43 kg |
| 600GSS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | All 304 | 55 kg |
| 800GCS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 | 59 kg |
| 800GSS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | All 304 | 69 kg |
Need Assistance?
Contact our customer service for direct access to the product you want!
Quality Assurance
Free Customization
Tailored solutions for your specific requirements
Factory Direct Sales
Competitive pricing without middlemen
Quality Assurance
Rigorous testing and quality control
High Quality Material
Premium materials for durability
Strong and Durable
Built to last in industrial environments
No Worries After Sale
Comprehensive after-sales support
Manufacturing Excellence
Shenzhen Meiri Purification Technology Co., Ltd - Founded in 2012, specializing in research, development, sales, and service of air filters, air purification equipment, and clean room solutions.
Production Capabilities
- Clean production hall with advanced air filtration
- 2 AMABA automatic CNC presses
- 5 automatic CNC bending machines
- 5 shearing machines and multiple bending machines
- 2 interactive laser engraving machines
- Dozens of national patents and international certifications (CE, UL, ROHS, REACH)
Quality Testing
- Appearance Testing
- Functional Test and Visual Inspection
- Electrical Safety Tests
- Air Velocity Testing
- Noise Testing
Frequently Asked Questions
What's your sample and production lead time?
Sample: 3-7 days. Mass production: 2-3 weeks.
How do you ship the goods?
By vessel for full containers, air freight or international couriers for urgent/small orders.
Where is your company located?
No. 79, Langbei Village Industry Road, Tongde Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province, China.
Can you arrange a visit to your factory?
Yes, of course.
Can you provide customized products?
Yes, of course.
Do you test all products before delivery?
Yes, we perform 100% testing and provide test reports.
