GMP Embedded Static Pass Box with Mechanical Interlock and 304 Stainless Steel for Food Industry and Hospital
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 500 Set/Sets per Day |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Weight (KG): | 26 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | New Product 2022 | Warranty Of Core Components: | 2 Years |
| Core Components: | Box Of Metal | Warranty: | 2 Years |
| Product Name: | Pass Box | Material: | Outer Cold Rolled Steel; Inter 304 Stainless Steel |
| After-sales Service Provided: | 5 Years | Lock: | Mechanical Interlock |
| Door: | Flat Door | External Size: | Custom |
| Internal Size: | Custom | Port: | ShenZhen Port, Acording To Customer Requirements |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Embedded Static Pass Box,Single Gmp Static Pass Box |
||
Product Description

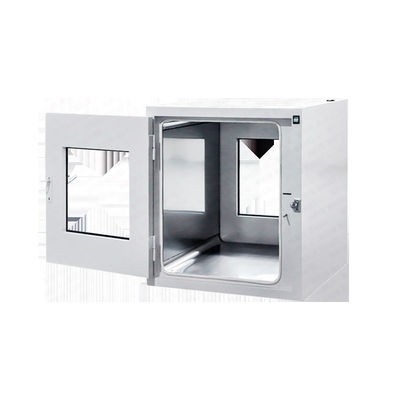

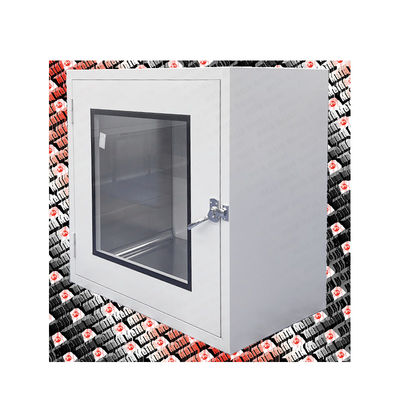

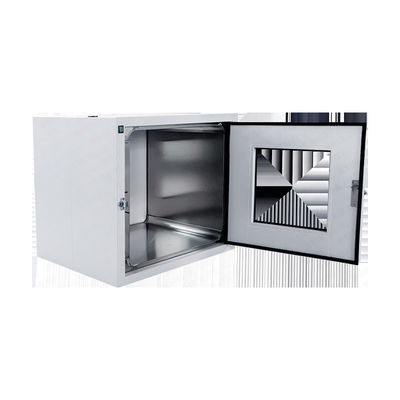

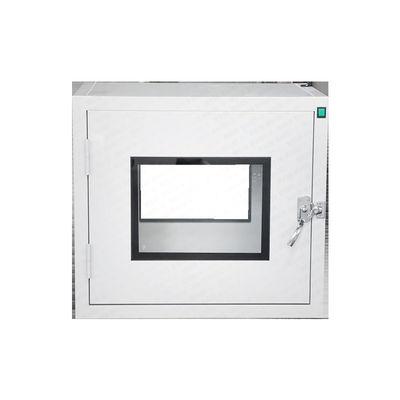

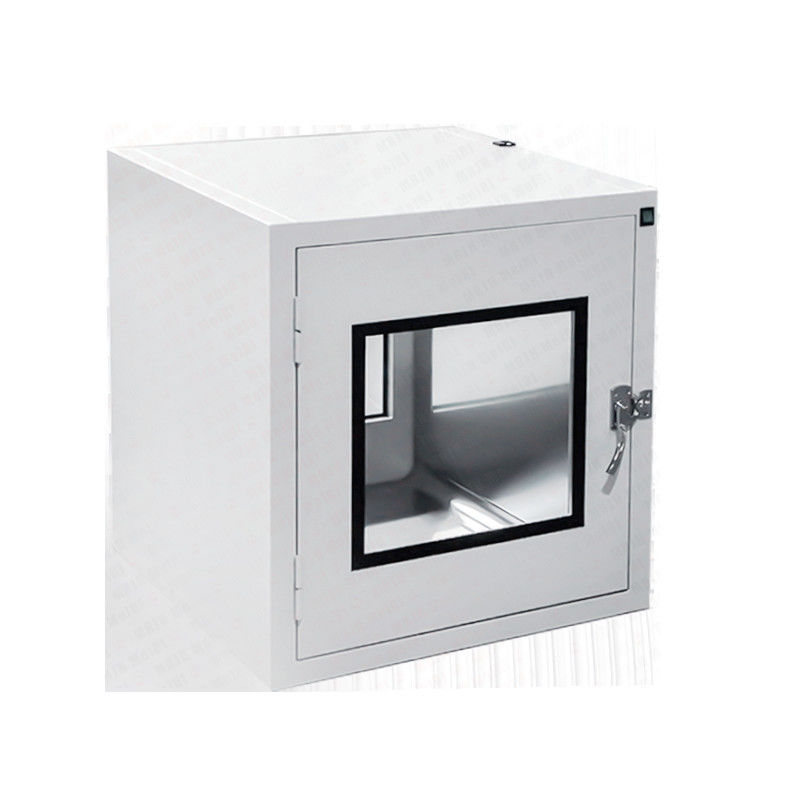

Single GMP Embedded Static Pass Box Window with Mechanical Interlock
Company Advantages
- Professional manufacturer with 12 years of experience
- 20,000㎡ modern factory facility
- Leading company in the clean room industry
- Over 300 employees including R&D and production teams
- Accept R&D, sampling, production and mass production of non-standard products
- Fast delivery of standard products
Customized UV Price of Pass Box Window & Clean Room OEM/ODM Acceptable
Product Specifications
| Product | Pass Box |
|---|---|
| Material | Aluminum / Steel / Stainless Steel / Custom |
| Use | Reduce contamination of clean rooms from small items transfer |
| Application | Medical, Pharmacy, Food Industry, Livestock, Power Plants, Healthcare and Hospital, Research Institutions, Aerospace Technology, Auto Industry |
| Features | Internal arc treatment, seamless connection |
| Add-on Features | Allowed - Please contact us |
| Locks | Mechanical locks |
| Buzzer, Walkie-talkie | Supported Options Custom |
| Air shower, Laminar flow | Supported Options Custom |
| DOP, Barometer | Supported Options Custom |
| Landing and lifting | Supported Options Custom |
Key Functions
- Material Transfer: Designed to facilitate the transfer of materials, samples, or equipment between cleanrooms or between cleanroom and non-cleanroom areas while minimizing contamination risk.
- Contamination Control: Features dual-door system ensuring only one door can be opened at a time, preventing cross-contamination.
- Sterile Barrier: Acts as a sterile barrier allowing material transfer while preventing contaminant entry.
More drawings available
Consult and get your own engineering consultant
Product Introduction
As auxiliary equipment for clean rooms, transfer windows are primarily used for transferring small items between clean areas, unclean areas, and clean areas. This reduces the opening times of clean room doors and minimizes contamination of clean areas to the greatest extent.
Design Features
- Clean Air Jets: High-velocity air jets strategically positioned to remove particles and contaminants
- Entry and Exit Doors: Interlocking doors ensure individuals must pass through air shower before entering or leaving clean area
Application Showcase
Performance Benefits
- Particle Removal: High-velocity jets of clean air effectively remove dust, bacteria, and other particles from surfaces
- Contamination Control: Prevents external contaminants from entering and helps maintain clean environment stability
Product Specifications Table
| Model No. | Out Size | In Size | Material | Weight |
|---|---|---|---|---|
| Mechanical Lock Pass Box | ||||
| 400CS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 Stainless |
30 kg |
| 400SS | W 560mm D 480mm H 520mm | W 400mm D 400mm H 400mm | All 304 Stainless | 33 kg |
| 600CS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 Stainless |
45 kg |
| 600SS | W 760mm D 680mm H 720mm | W 600mm D 600mm H 600mm | All 304 Stainless | 50 kg |
| 800CS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 Stainless |
60 kg |
| 800SS | W 960mm D 880mm H 920mm | W 800mm D 800mm H 800mm | All 304 Stainless | 66 kg |
| GMP Electronic Lock Pass Box | ||||
| 400GCS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 Stainless |
33 kg |
| 400GSS | W 600mm D 490mm H 560mm | W 400mm D 400mm H 400mm | All 304 Stainless | 40 kg |
| 600GCS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 Stainless |
43 kg |
| 600GSS | W 800mm D 690mm H 760mm | W 600mm D 600mm H 600mm | All 304 Stainless | 55 kg |
| 800GCS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 Stainless |
59 kg |
| 800GSS | W 1100mm D 890mm H 960mm | W 800mm D 800mm H 800mm | All 304 Stainless | 69 kg |
| Air Shower Pass Box | ||||
| 600FCS | W 950mm D 680mm H 1550mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 Stainless |
70 kg |
| 600FSS | W 950mm D 680mm H 1550mm | W 600mm D 600mm H 600mm | All 304 Stainless | 89 kg |
| 800FCS | W 1550mm D 880mm H 1750mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 Stainless |
100 kg |
| 800FSS | W 1550mm D 880mm H 1750mm | W 800mm D 800mm H 800mm | All 304 Stainless | 118 kg |
| 1000FCS | W 1350mm D 1080mm H 1950mm | W 1000mm D 1000mm H 1000mm | External: Coated Cold Steel Internal: 304 Stainless |
130 kg |
| 1000FSS | W 1350mm D 1080mm H 1950mm | W 1000mm D 1000mm H 1000mm | All 304 Stainless | 148 kg |
| Laminar Flow Pass Box | ||||
| 400LCS | W 600mm D 490mm H 1000mm | W 400mm D 400mm H 400mm | External: Coated Cold Steel Internal: 304 Stainless |
59 kg |
| 400LSS | W 600mm D 490mm H 1000mm | W 400mm D 400mm H 400mm | All 304 Stainless | 78 kg |
| 600LCS | W 800mm D 690mm H 1200mm | W 600mm D 600mm H 600mm | External: Coated Cold Steel Internal: 304 Stainless |
83 kg |
| 600LSS | W 800mm D 690mm H 1200mm | W 600mm D 600mm H 600mm | All 304 Stainless | 100 kg |
| 800LCS | W 1100mm D 890mm H 1400mm | W 800mm D 800mm H 800mm | External: Coated Cold Steel Internal: 304 Stainless |
112 kg |
| 800LSS | W 1100mm D 890mm H 1400mm | W 800mm D 800mm H 800mm | All 304 Stainless | 145 kg |
Safety Features: Air shower rooms are equipped with appropriate lighting, emergency stop buttons, and safety sensors to ensure safe operation and emergency response.
Quality Assurance & Services
Free Customization
Factory Direct Sales
Quality Assurance
High Quality Material
Strong and Durable
No Worries After Sale
Safeguarding Air Quality
Company Profile
VR Technology Available
Welcome to visit our factory
With advanced air purification equipment production and processing and highly automated machine lines, our products and production technology have obtained dozens of national patents and international certifications such as CE, UL, ROHS, and REACH. So far, we have always been able to meet the production requirements of large-scale projects.
Multiple AMADA Turret CNC Punch Presses
FFU Production Line
AMADA CNC Bending Machine
Quality Testing Procedures:
- Appearance Testing
- Functional Test And Visual Inspection
- Electrical Safety Tests
- Air Velocity Testing
- Noise Testing
1300×1300 High Efficiency Filter Production Line
2000 Watt Laser
Integrated Laser Cutting and Tube Cutting Machine
French KIMO Noise Meter
FFU Motor Testing Equipment
KIMO Anemometer
Shipping & Certification
Transportation: Shipping options by ship or air are available. Our products are packed in bulk or in customized packages according to customers' requirements.
Certification & Quality Management:
Certificate can be verified, welcome to the factory field visit. Has built a modern quality management system which is in strict accordance with international standards such as ISO9001, ISO14001. Till now our products and production technology have obtained dozens of national patents and international certification such as CE, UL, RoHS, REACH.
Certificate can be verified, welcome to the factory field visit. Has built a modern quality management system which is in strict accordance with international standards such as ISO9001, ISO14001. Till now our products and production technology have obtained dozens of national patents and international certification such as CE, UL, RoHS, REACH.
Frequently Asked Questions
Q: What's your sample and production lead time?
A: The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
Q: Can you provide customized products as our requirements?
A: Yes, of course.
Q: Do you test all your products before delivery?
A: Yes, of course. We will do 100% test and provide test report before delivery.
Q: How long is your items delivery time?
A: It is normal 10~30 days. Usually it depends on order size, quantity and configuration, etc.
Q: What payment term can you accept? What price term can you accept?
A: We can accept T/T, L/C, etc. We can accept EXW, FOB, CFR, CIF, DDU, etc.
Q: What after-sale service can you provide?
A: We can provide 24 hours' technical support online by e-mail, phone, video, etc.
Q: How many countries have you exported to? How do you make long-term relationship and cooperation?
A: We have exported to over 30 countries in Asia, Middle East, Africa, Europe, North America, South America, etc. We will offer good quality, service and price to ensure our customer satisfaction. We will consider our customer as our friend to help them to solve problems.
