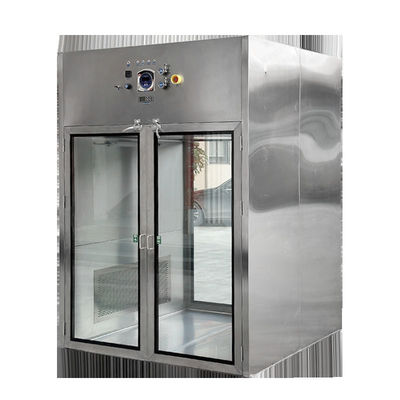

Double Door Clean Room Pass Box with HEPA Filter and Mechanical Locks for Lab Use
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644,EU GMP,FDA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Packaging Details: | Individually packed,<br>Packed in wooden cases,<br>Packing according to customer's requirement |
| Delivery Time: | 7-15 working days |
| Supply Ability: | 300 Set/Sets per Week |
|
Detail Information |
|||
| Features: | Internal Arc Treatment, Seamless Connection | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Other, Advert |
|---|---|---|---|
| Weight (KG): | 55 | Showroom Location: | None |
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 5 Years |
| Core Components: | Lock | Warranty: | 5 Years |
| Product: | Pass Box | Material: | Steel / SS. / Custom |
| Use: | Reduce The Contamination Of Clean Rooms From Small Items | Add-on Features: | Allowed, Please Contact Us |
| Locks: | Mechanical Locks | Buzzer,Walkie-talkie: | Supported Options Custom |
| Air Shower,Laminar Flow: | Supported Options Custom | DOP,Barometer: | Supported Options Custom |
| Landing And Lifting: | Supported Options Custom | Port: | ShenZhen Port, Acording To Customer Requirements |
| Certification: | ISO,CE,UL,RoHS | ||
| Highlight: | Double Door Clean Room Pass Box,H14 Clean Room Pass Box,H14 Air Shower Pass Box |
||
Product Description
Double Door Clean Room Pass Box For Lab Hepa Adopts Air Shower Pass Box
Cleanroom pass box for lab HEPA adopts cleanroom double door air shower pass box, providing convenient delivery of drugs, food, and other articles to isolated patients receiving radiation druging treatment while avoiding radiation leakage.
Product Introduction
The pass box provides a convenient delivery system for drugs, food, and other articles to isolated patients receiving radiation druging treatment while effectively preventing radiation leakage.
Specification
| Product | Pass Box |
| Material | Aluminum / Steel / Stainless Steel / Custom |
| Use | Reduce contamination of clean rooms from small items |
| Application | Medical Pharmacy, Food Industry, Livestock, Power Plants, Healthcare and Hospital, Research Institution, Aerospace Technology, Auto Industry |
| Features | Internal arc treatment, seamless connection |
| Add-on Features | Allowed - Please contact us |
| Locks | Mechanical locks / Electronic locks |
| Buzzer, Walkie-talkie | Supported Options Custom |
| Air Shower, Laminar Flow | Supported Options Custom |
| DOP, Barometer | Supported Options Custom |
| Landing and Lifting | Supported Options Custom |
Product Details
Pass Box including items in the turntable, wall outside radiation protection window and wall inside radiation protection window. A rotating table is arranged between the outer radiation protection window and the inner radiation protection window of the wall.
Application Show
Mechanical Lock Pass Box
| Model | External Dimensions | Internal Dimensions | Material | Weight |
|---|---|---|---|---|
| 400CS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 |
30 kg |
| 400SS | W 560 mm D 480 mm H 520 mm | W 400 mm D 400 mm H 400 mm | All 304 | 33 kg |
| 600CS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 |
45 kg |
| 600SS | W 760 mm D 680 mm H 720 mm | W 600 mm D 600 mm H 600 mm | All 304 | 50 kg |
| 800CS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 |
60 kg |
| 800SS | W 960 mm D 880 mm H 920 mm | W 800 mm D 800 mm H 800 mm | All 304 | 66 kg |
GMP Electronic Lock Pass Box
| Model | External Dimensions | Internal Dimensions | Material | Weight |
|---|---|---|---|---|
| 400GCS | W 600 mm D 490 mm H 560 mm | W 400 mm D 400 mm H 400 mm | External: Coated Cold Steel Internal: 304 |
33 kg |
| 400GSS | W 600 mm D 490 mm H 560 mm | W 400 mm D 400 mm H 400 mm | All 304 | 40 kg |
| 600GCS | W 800 mm D 690 mm H 760 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 |
43 kg |
| 600GSS | W 800 mm D 690 mm H 760 mm | W 600 mm D 600 mm H 600 mm | All 304 | 55 kg |
| 800GCS | W 1100 mm D 890 mm H 960 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 |
59 kg |
| 800GSS | W 1100 mm D 890 mm H 960 mm | W 800 mm D 800 mm H 800 mm | All 304 | 69 kg |

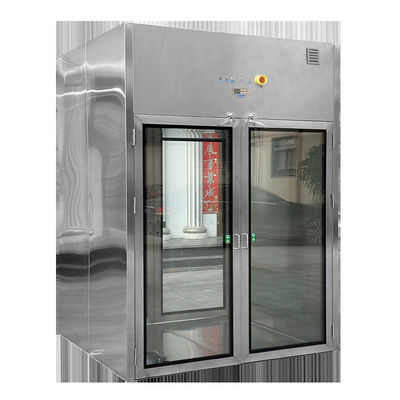

Air Shower Pass Box
| Model | External Dimensions | Internal Dimensions | Material | Weight |
|---|---|---|---|---|
| 600FCS | W 950 mm D 680 mm H 1550 mm | W 600 mm D 600 mm H 600 mm | External: Coated Cold Steel Internal: 304 |
70 kg |
| 600FSS | W 950 mm D 680 mm H 1550 mm | W 600 mm D 600 mm H 600 mm | All 304 | 89 kg |
| 800FCS | W 1550 mm D 880 mm H 1750 mm | W 800 mm D 800 mm H 800 mm | External: Coated Cold Steel Internal: 304 |
100 kg |
| 800FSS | W 1550 mm D 880 mm H 1750 mm | W 800 mm D 800 mm H 800 mm | All 304 | 118 kg |
| 1000FCS | W 1350 mm D 1080 mm H 1950 mm | W 1000 mm D 1000 mm H 1000 mm | External: Coated Cold Steel Internal: 304 |
130 kg |
| 1000FSS | W 1350 mm D 1080 mm H 1950 mm | W 1000 mm D 1000 mm H 1000 mm | All 304 | 148 kg |
Contact our customer service for direct access to the product you want!
Free Customization
Factory Direct Sales
Quality Assurance
High Quality Material
Strong and Durable
No worries after sale - Professional after-sales service with one-to-one online processing, timely feedback, and one-stop service support.
VR Technology
Shenzhen Meiri Purification Technology Co., Ltd
Established in 2012, we specialize in research, development, sales and service of air filters, air purification equipment and clean room solutions. With advanced production and processing of air purification equipment and highly automated machine lines.
Manufacturing Excellence:
- High quality sheet metal
- Beautiful and durable surface
- One-piece injection moulding motor - Compared with ordinary motor
All products can be customized in size and style according to any customer special requirements.
Safeguarding Air Quality
Technology Guardian of Health
Certifications & Quality
Certificate can be verified, welcome to the factory field visit.
We have built a modern quality management system in strict accordance with international standards such as ISO9001, ISO14001. Our products and production technology have obtained dozens of national patents and international certifications including CE, UL, RoHS, REACH.
Frequently Asked Questions
Q: What's your sample and production lead time?
A: The lead time for sample takes around 3-7 days, mass production lead time is about 2-3 weeks.
Q: How do you ship the goods?
A: It depends on customer's demands. For full containers, we suggest shipping by vessel. For small order volumes & urgent orders, we suggest shipping by air freight or international couriers.
Q: Where is your company located?
A: Our company & factory are located in Shenzhen, China (No. 79, Langbei Village Industry Road, Tongde Community, Baolong Street, Longgang District, Shenzhen City, Guangdong Province, China).
Q: Can you arrange a visit to your factory?
A: Yes, of course.
Q: Do you test all your products before delivery?
A: Yes, of course. We will do 100% test and provide test report before delivery.
Q: What payment term can you accept? What price term can you accept?
A: We can accept T/T, L/C, etc. We can accept EXW, FOB, CFR, CIF, DDU, etc.
Q: What after-sale service can you provide?
A: We can provide 24 hours' technical support online by e-mail, phone, video, etc.
Want to Know more details about this product
