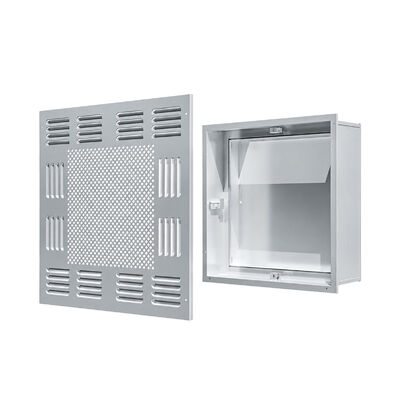

HEPA Air Supply Outlet for PCB Cleanroom Manufacturing
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | MRJH |
| Certification: | ISO 14644、FDA、EU GMP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Contact Us |
| Delivery Time: | 7-15 working days |
|
Detail Information |
|||
| Custom Made: | Support | ||
|---|---|---|---|
| Highlight: | ISO 14644 certified HEPA air outlet,HEPA box with 1000 CMH airflow,cold plate painted HEPA outlet |
||
Product Description
ISO 14644 High-Efficiency Ceiling Air Outlet| 1000 CMH | Lab/Factory Use

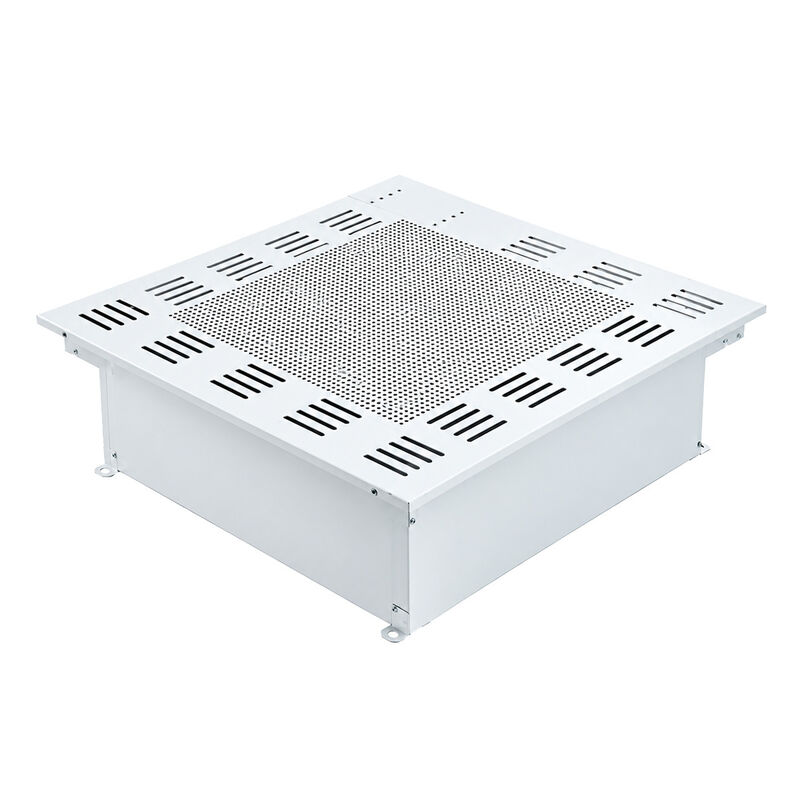

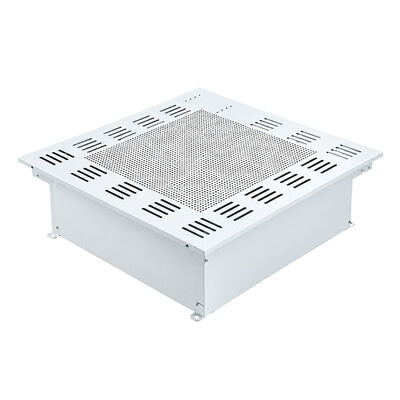

Ceiling-mounted air supply outlet with 1000 CMH airflow & HEPA. Cold plate painted, 534x534x260mm. EN 1822-certified for ISO 5-8 cleanrooms.
|
Parameter Name |
Value |
|
Main Body Material |
Painted cold-rolled steel |
|
Diffuser Plate Material |
Painted cold-rolled steel |
|
Air Inlet Flange |
320×200 mm |
|
H13 HEPA Filter |
484×484×90 mm |
|
Body Dimensions |
534×534×260 mm |
|
Ceiling Opening |
539×539 mm |
|
Diffuser Design |
5mm full holes + louver holes |
Key Features
Industrial-Grade Durability:
Cold plate painted finish and galvanized components resist chemical exposure, humidity, and abrasive cleaning.
Adaptive Airflow Management:
Adjustable louvers optimize laminar flow distribution for ISO Class 5-8 compliance.
Space-Efficient Design:
Compact 534×534×260 mm body maximizes plenum space efficiency in constrained installations.
Low-Maintenance Operation:
Tool-free filter access panel simplifies replacements, minimizing downtime in 24/7 production environments.
Application Scenarios
Pharmaceutical bulk production: High-volume sterile air supply for vial filling or lyophilization processes.
Semiconductor cleanrooms: Particle-controlled environments for wafer fabrication and lithography.
Hospital ICUs: Sterile airflow delivery in high-risk isolation units.
Biotech fermentation labs: Contamination-free air supply for large-scale bioreactors.
Food processing plants: Hygienic airflow in high-throughput meat or dairy packaging zones.
FAQ 1: How does the 1000 CMH airflow maintain ISO 5 standards in high-ceiling industrial facilities?
Answer: The hybrid diffuser (5mm holes + louvers) and HEPA filter create laminar flow with ±8% velocity variance, validated for ISO 5 compliance in facilities with ceiling heights up to 6 meters.
FAQ 2: Can the cold plate painted finish withstand frequent high-pressure cleaning in food processing plants?
Answer: Yes. The epoxy-coated cold plate steel resists high-pressure washing (up to 1500 PSI) and chemicals (bleach, acids). Passivated fasteners prevent rust in USDA/FDA-compliant food zones.
FAQ 3: Is the 534x534x260mm design compatible with energy-efficient HVAC retrofits?
Answer: Yes. The aerodynamic diffuser reduces static pressure by 15% vs. standard models, cutting energy costs. Compatible with variable air volume (VAV) systems for smart HVAC upgrades.
